水流量的大小由三种方式控制，增减泵头的内径，或延长或缩短柱塞的行程。 增减柱塞的往复速度。 大多数高压清洗机使用一套阀门和泵头组成系统，柱塞将水拉到供水阀门，施加压力使其通过出水阀门。 通过阀门两侧不同的压力差完成压力操作。阀门通过防止逆流来控制水通过泵。 阀门由弹簧和托架构成， 作用于阀门的压力大于弹簧的能力时，阀门就会打开。 在相反的行程中，水自动将支架压在阀座上，使阀保持关闭，防止逆流。 了解了这个原理，就知道该如何操作这个清洗设备了。

The size of water flow is controlled by three methods: increasing or decreasing the inner diameter of the pump head, or extending or shortening the stroke of the plunger. Increase or decrease the reciprocating speed of the plunger. Most high-pressure cleaning machines use a system of valves and pump heads, with a plunger pulling water to the supply valve and applying pressure to pass it through the outlet valve. Complete the pressure operation through different pressure differences on both sides of the valve. The valve controls water flow through the pump by preventing reverse flow. The valve is composed of a spring and a bracket, and when the pressure acting on the valve exceeds the capacity of the spring, the valve will open. In the opposite stroke, the water automatically presses the bracket onto the valve seat, keeping the valve closed and preventing reverse flow. By understanding this principle, you will know how to operate this cleaning device.

由于喷淋清洗机通过高压水流去污，使用高压清洗机清洗也是目前世界上科学、经济、环保的清洗方法。 因此，在进行工业清洗时，采用这样的清洗设备性价比高，清洗效果好。

Due to the use of high-pressure water flow for cleaning by spray cleaning machines, using high-pressure cleaning machines for cleaning is currently a scientific, economical, and environmentally friendly cleaning method worldwide. Therefore, when conducting industrial cleaning, using such cleaning equipment has a high cost-effectiveness and good cleaning effect.

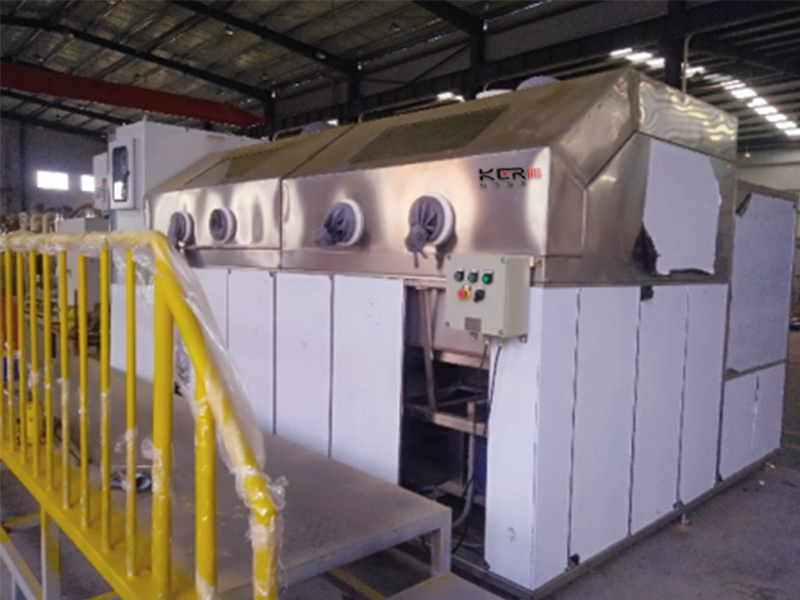

喷淋清洗机的结构：

The structure of the spray cleaning machine:

1、高喷淋清洗机外部采用镀锌和不锈钢外壳，采用不锈钢或(角通)骨架焊接，清洗机上盖部分采用单层结构，由1.2mm厚的不锈钢板制作，外贴保温层，降低能耗。 箱体采用单层结构，内部配有PU淋浴管，封闭通过式通道。 为全封闭结构，实现洗涤液过滤、铁屑沉淀、油过滤、油分离;由SUS304不锈钢1.2mm厚的不锈钢板制作; 内部由隔板分为几个区域，水箱设有水分补给口、排液口、溢水口。

1. The exterior of the high spray cleaning machine is made of galvanized and stainless steel shell, welded with stainless steel or (angle through) framework. The upper cover of the cleaning machine adopts a single-layer structure, made of 1.2mm thick stainless steel plate, with an external insulation layer attached to reduce energy consumption. The box adopts a single-layer structure, equipped with PU shower pipes inside, and enclosed through channels. For a fully enclosed structure, achieving washing solution filtration, iron filings precipitation, oil filtration, and oil separation; Made of SUS304 stainless steel 1.2mm thick stainless steel plate; The interior is divided into several areas by partitions, and the water tank is equipped with water supply ports, discharge ports, and overflow ports.

2 、喷淋清洗机的底部两侧向中央倾斜，清洗液从容器底部的排液口集中排出。 罐内设有液位控制器，液位异常时应立即注意补水、停水。 温度自动控制在10~90的范围内，手动设定、自动控制。有温度计的自动显示。 罐外贴上保温棉，异常情况实现紧急停止。 防锈箱的内部设置有不锈钢电热加热器，在30~60分钟内使液体从室温上升到使用温度。防止热量散发。

2. The bottom sides of the spray cleaning machine are tilted towards the center, and the cleaning solution is centrally discharged from the discharge port at the bottom of the container. There is a liquid level controller inside the tank, and in case of abnormal liquid level, immediate attention should be paid to replenishing and stopping water. The temperature is automatically controlled within the range of 10-90, manually set and automatically controlled. Automatic display with thermometer. Stick insulation cotton on the outside of the tank to achieve emergency stop in abnormal situations. The interior of the rust proof box is equipped with a stainless steel electric heater, which can raise the liquid from room temperature to service temperature within 30-60 minutes. Prevent heat dissipation.

喷淋清洗机的原理带来的好处：

The principle of spray cleaning machine brings benefits:

在所有清洗方式中，是与独特的工作原理和清洗方法密切相关的。 虽然像平时一样在生产和生活中，需要清洗的东西很多，需要清洗的种类和环节也很多，喷淋清洗机是效率高、效果统一的方式。 喷淋清洗机之所以能达到这样的效果， 喷淋清洗机操作简单，故障少，但是淋浴清洗机可以批量清洗工件，效果统一，控制性高，成本低，可以进行大量连续自动作业。清洗效果统一。高压淋浴清洗机的应用范围：

Among all cleaning methods, it is closely related to the unique working principle and cleaning method. Although there are many things that need to be cleaned in production and daily life, as usual, and there are also many types and processes that need to be cleaned, the spray cleaning machine is an efficient and uniform method. The reason why the spray cleaning machine can achieve such an effect is that the operation of the spray cleaning machine is simple and there are few faults. However, the shower cleaning machine can clean workpieces in batches, with unified effects, high control, low cost, and can perform a large number of continuous automatic operations. Uniform cleaning effect. The application range of high-pressure shower cleaning machine:

喷淋清洗机广泛应用于各行各业，电机行业：电机外壳清洗。 适用于简单的结构和管件产品的清洗。五金行业有厨师、水槽、家电产品有限公司。 民间行业：餐盘、洗碗、浴巾、毛巾批量清洗。

Spray cleaning machines are widely used in various industries, including motor casing cleaning. Suitable for cleaning simple structures and pipe fittings. There are chefs, sinks, and home appliance products limited companies in the hardware industry. Folk industry: Batch cleaning of dinner plates, dishes, bath towels, and towels.
